Bewise Inc. se spécialise à la fabrication, fournissant et exportant le insérer CBN, une usine en Taiwan.C'a toujours été notre foyer pour fabriquer le produits qualité et pour le livrer à l'heure avec le service après-vente attentif.Notre esprit innovateur nous permet de devancer nos concurrents en fournissant l'éventail de produits.
Modèle: DT
insérer CBN
Diamond Tools -CBN Insérer
Avant la lame CBN peut être améliorée que de son épaisseur et la netteté qui, avec des fonctions limitées de découpage ou broyage de certains documents. Et il est limité après que le moule est conçu. Le fabricant de change juste en utilisant matériau différent, mais pas moyen de changer sa coupe ou de meulage d'application. Par conséquent, le but pour BW à la recherche lame de diamant est de surmonter une telle tradition et de développer une meilleure coupe de qualité.

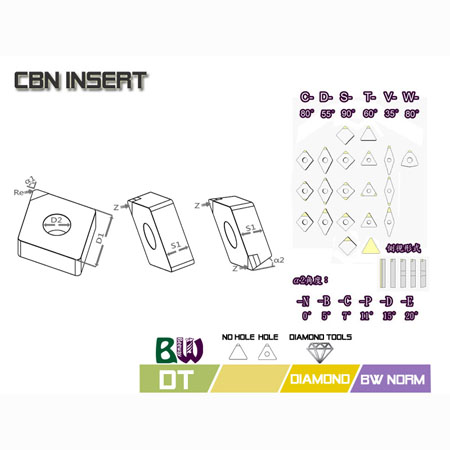

| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| CN127476041C | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 80° | 0° |
| CN127476081C | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 80° | 0° |
| CN127476121C | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 80° | 0° |
| CN127476042C | 12.7 | 4.76 | 0.4 | 5.16 | 2 | 80° | 0° |
| CN127476082C | 12.7 | 4.76 | 0.8 | 5.16 | 2 | 80° | 0° |
| CN127476122C | 12.7 | 4.76 | 1.2 | 5.16 | 2 | 80° | 0° |
| DN127476041C | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 55° | 0° |
| DN127476081C | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 55° | 0° |
| DN127476121C | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 55° | 0° |
| DN127476042C | 12.7 | 4.76 | 0.4 | 5.16 | 2 | 55° | 0° |
| DN127476082C | 12.7 | 4.76 | 0.8 | 5.16 | 2 | 55° | 0° |
| DN127476122C | 12.7 | 4.76 | 1.2 | 5.16 | 2 | 55° | 0° |
| SN127476041C | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 90° | 0° |
| SN127476081C | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 90° | 0° |
| SN127476121C | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 90° | 0° |
| SN127476042C | 12.7 | 4.76 | 0.4 | 5.16 | 2 | 90° | 0° |
| SN127476082C | 12.7 | 4.76 | 0.8 | 5.16 | 2 | 90° | 0° |
| SN127476122C | 12.7 | 4.76 | 1.2 | 5.16 | 2 | 90° | 0° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| TN9525476041C | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 60° | 0° |
| TN9525476081C | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 60° | 0° |
| TN9525476121C | 9.525 | 4.76 | 1.2 | 3.81 | 1 | 60° | 0° |
| TN127476041C | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 60° | 0° |
| TN127476081C | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 60° | 0° |
| TN127476121C | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 60° | 0° |
| TN9525476043C | 9.525 | 4.76 | 0.4 | 3.81 | 3 | 60° | 0° |
| TN9525476083C | 9.525 | 4.76 | 0.8 | 3.81 | 3 | 60° | 0° |
| TN9525476123C | 9.525 | 4.76 | 1.2 | 3.81 | 3 | 60° | 0° |
| VN9525476041C | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 35° | 0° |
| VN9525476081C | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 35° | 0° |
| VN9525476121C | 9.525 | 4.76 | 1.2 | 3.81 | 1 | 35° | 0° |
| VN9525476042C | 9.525 | 4.76 | 0.4 | 3.81 | 2 | 35° | 0° |
| VN9525476082C | 9.525 | 4.76 | 0.8 | 3.81 | 2 | 35° | 0° |
| VN9525476122C | 9.525 | 4.76 | 1.2 | 3.81 | 2 | 35° | 0° |
| WN127476081C | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 80° | 0° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| VB9525476041C | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 35° | 5° |
| VB9525476081C | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 35° | 5° |
| CC635238021C | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 80° | 7° |
| CC635238041C | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 80° | 7° |
| CC635238081C | 6.35 | 2.38 | 0.8 | 2.8 | 1 | 80° | 7° |
| CC357139021C | 3.57 | 1.39 | 0.2 | 2 | 1 | 80° | 7° |
| CC357139041C | 3.57 | 1.39 | 0.4 | 2 | 1 | 80° | 7° |
| CC437179021C | 4.37 | 1.79 | 0.2 | 2.4 | 1 | 80° | 7° |
| CC437179041C | 4.37 | 1.79 | 0.4 | 2.4 | 1 | 80° | 7° |
| CC9525397021C | 9.525 | 3.97 | 0.2 | 4.4 | 1 | 80° | 7° |
| CC9525397041C | 9.525 | 3.97 | 0.4 | 4.4 | 1 | 80° | 7° |
| CC9525397081C | 9.525 | 3.97 | 0.8 | 4.4 | 1 | 80° | 7° |
| CC127476041C | 12.7 | 4.76 | 0.4 | 5.5 | 1 | 80° | 7° |
| CC127476081C | 12.7 | 4.76 | 0.8 | 5.5 | 1 | 80° | 7° |
| CC127476121C | 12.7 | 4.76 | 1.2 | 5.5 | 1 | 80° | 7° |
| CC9525397042C | 9.525 | 3.97 | 0.4 | 4.4 | 2 | 80° | 7° |
| CC9525397082C | 9.525 | 3.97 | 0.8 | 4.4 | 2 | 80° | 7° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| DC635238021C | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 55° | 7° |
| DC635238041C | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 55° | 7° |
| DC635238081C | 6.35 | 2.38 | 0.8 | 2.8 | 1 | 55° | 7° |
| DC9525397021C | 9.525 | 3.97 | 0.2 | 4.4 | 1 | 55° | 7° |
| DC9525397041C | 9.525 | 3.97 | 0.4 | 4.4 | 1 | 55° | 7° |
| DC9525397081C | 9.525 | 3.97 | 0.8 | 4.4 | 1 | 55° | 7° |
| DC9525397042C | 9.525 | 3.97 | 0.4 | 4.4 | 2 | 55° | 7° |
| DC9525397082C | 9.525 | 3.97 | 0.8 | 4.4 | 2 | 55° | 7° |
| TC635238021C | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 60° | 7° |
| TC635238041C | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 60° | 7° |
| WC476238021C | 4.76 | 2.38 | 0.2 | 2.3 | 1 | 80° | 7° |
| WC476238041C | 4.76 | 2.38 | 0.4 | 2.3 | 1 | 80° | 7° |
| WC635238021C | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 80° | 7° |
| WC635238041C | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 80° | 7° |
| WC9525397041C | 9.525 | 3.97 | 0.4 | 4.4 | 1 | 80° | 7° |
| WC9525397081C | 9.525 | 3.97 | 0.8 | 4.4 | 1 | 80° | 7° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| CP794238021C | 7.94 | 2.38 | 0.2 | 3.6 | 1 | 80° | 11° |
| CP794238041C | 7.94 | 2.38 | 0.4 | 3.6 | 1 | 80° | 11° |
| CP9525318021C | 9.525 | 3.18 | 0.2 | 4.6 | 1 | 80° | 11° |
| CP9525318041C | 9.525 | 3.18 | 0.4 | 4.6 | 1 | 80° | 11° |
| SP9525318041C | 9.525 | 3.18 | 0.4 | 4.8 | 1 | 90° | 11° |
| SP9525318081C | 9.525 | 3.18 | 0.8 | 4.8 | 1 | 90° | 11° |
| TP476238021C | 4.76 | 2.38 | 0.2 | 2.5 | 1 | 60° | 11° |
| TP476238041C | 4.76 | 2.38 | 0.4 | 2.5 | 1 | 60° | 11° |
| TP556238021C | 5.56 | 2.38 | 0.2 | 3 | 1 | 60° | 11° |
| TP556238041C | 5.56 | 2.38 | 0.4 | 3 | 1 | 60° | 11° |
| TP556238081C | 5.56 | 2.38 | 0.8 | 3 | 1 | 60° | 11° |
| TP635318041C | 6.35 | 3.18 | 0.4 | 3.5 | 1 | 60° | 11° |
| TP635318041C | 6.35 | 3.18 | 0.8 | 3.5 | 1 | 60° | 11° |
| TP9525318041C | 9.525 | 3.18 | 0.4 | 4.8 | 1 | 60° | 11° |
| TP9525318081C | 9.525 | 3.18 | 0.8 | 4.8 | 1 | 60° | 11° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| WP635238021C | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 80° | 11° |
| WP635238021C | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 80° | 11° |
| WP9525318041C | 9.525 | 3.18 | 0.4 | 4.4 | 1 | 80° | 11° |
| WP9525318081C | 9.525 | 3.18 | 0.8 | 4.4 | 1 | 80° | 11° |
| TE9525318021C | 9.525 | 3.18 | 0.2 | 4.3 | 1 | 60° | 20° |
| TE9525318041C | 9.525 | 3.18 | 0.4 | 4.3 | 1 | 60° | 20° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| SN9525318041NC | 9.525 | 3.18 | 0.4 | - | 1 | 90° | 0° |
| SN9525318081NC | 9.525 | 3.18 | 0.8 | - | 1 | 90° | 0° |
| SN127476041NC | 12.7 | 4.76 | 0.4 | - | 1 | 90° | 0° |
| SN127476081NC | 12.7 | 4.76 | 0.8 | - | 1 | 90° | 0° |
| SN127476121NC | 12.7 | 4.76 | 1.2 | - | 1 | 90° | 0° |
| TN9525476041NC | 9.525 | 4.76 | 0.4 | - | 1 | 60° | 0° |
| TN9525476081NC | 9.525 | 4.76 | 0.8 | - | 1 | 60° | 0° |
| TB39715904NC | 3.97 | 1.59 | 0.4 | - | 1 | 60° | 5° |
| TB39715908NC | 3.97 | 1.59 | 0.8 | - | 1 | 60° | 5° |
| SP9525318021NC | 9.525 | 3.18 | 0.2 | - | 1 | 90° | 11° |
| SP9525318041NC | 9.525 | 3.18 | 0.4 | - | 1 | 90° | 11° |
| SP9525318081NC | 9.525 | 3.18 | 0.8 | - | 1 | 90° | 11° |
| SP9525318121NC | 9.525 | 3.18 | 1.2 | - | 1 | 90° | 11° |
| SP127318041NC | 12.7 | 3.18 | 0.4 | - | 1 | 90° | 11° |
| SP127318081NC | 12.7 | 3.18 | 0.8 | - | 1 | 90° | 11° |
| SP127318121NC | 12.7 | 3.18 | 1.2 | - | 1 | 90° | 11° |
| SP127476081NC | 12.7 | 4.76 | 0.8 | - | 1 | 90° | 11° |
| SP127476121NC | 12.7 | 4.76 | 1.2 | - | 1 | 90° | 11° |
| Code de commande | D1 | S1 | Re | D2 | Z | α1 | α2 |
| TP556238041NC | 5.56 | 2.38 | 0.4 | - | 1 | 60° | 11° |
| TP635318021NC | 6.35 | 3.18 | 0.2 | - | 1 | 60° | 11° |
| TP635318041NC | 6.35 | 3.18 | 0.4 | - | 1 | 60° | 11° |
| TP635318081NC | 6.35 | 3.18 | 0.8 | - | 1 | 60° | 11° |
| TP9525318021NC | 9.525 | 3.18 | 0.2 | - | 1 | 60° | 11° |
| TP9525318041NC | 9.525 | 3.18 | 0.4 | - | 1 | 60° | 11° |
| TP9525318081NC | 9.525 | 3.18 | 0.8 | - | 1 | 60° | 11° |
| TP9525318121NC | 9.525 | 3.18 | 1.2 | - | 1 | 60° | 11° |
| TP9525476081NC | 9.525 | 4.76 | 0.8 | - | 1 | 60° | 11° |
| TP127476081NC | 12.7 | 4.76 | 0.8 | - | 1 | 60° | 11° |
