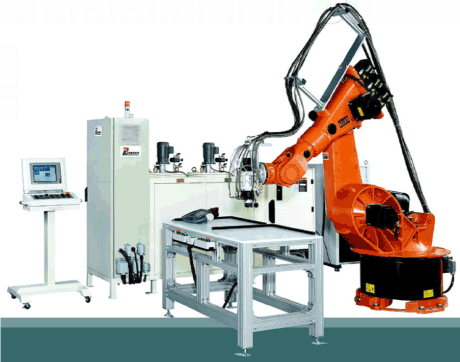

Formed In Place Foam Gasket Machine-FIPFG-2081BW

Characteristics：FIPFG -2081BW is integrated with 6-axis robot of KUKA,and is operated for every kinds of sealing,gluing and casting for product,to instead of traditional manual steps of work.It can reduce cost of labors and material,but promote product quality.

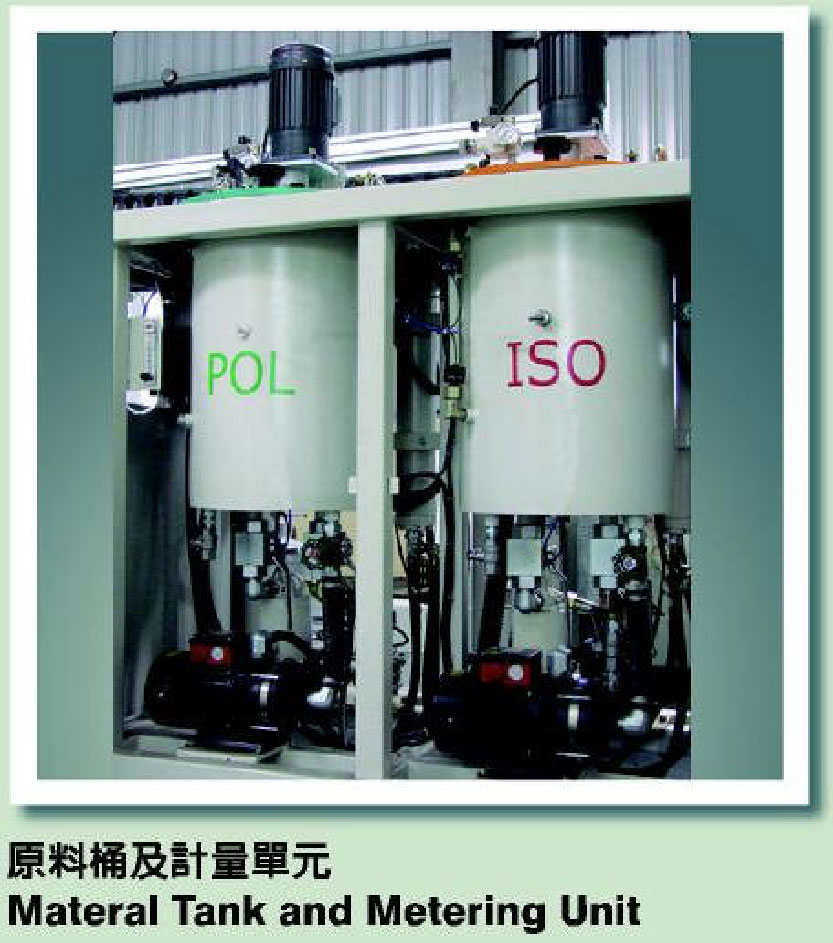

Materal Tank and Metering Unit：
- Double-layers stainless materal tanks with metering,temperature and pressure control.
- Automatic air sparger device.
The characteristics of the machine arm：
1. The shutting down time to reduce and is caused by colliding,reduce the robot within shortest time.

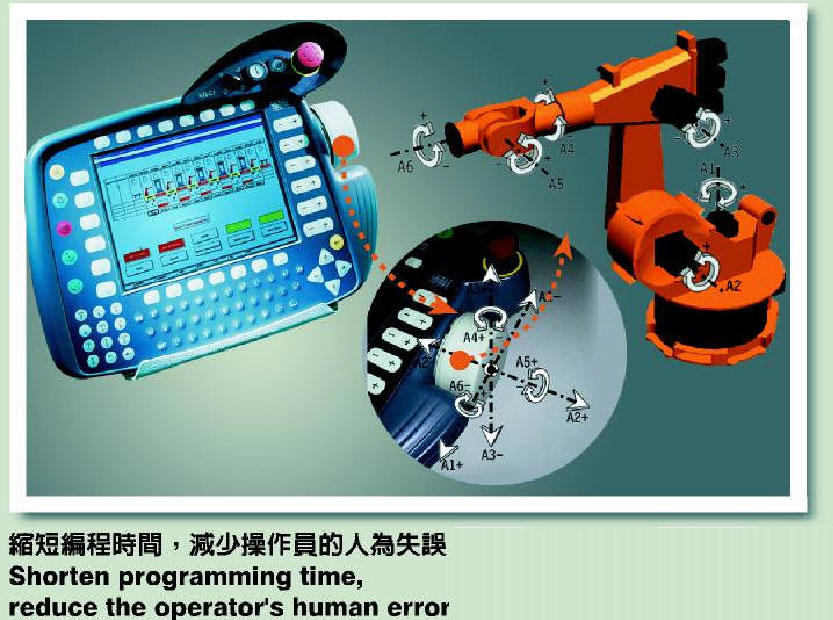

2. Shorten programming time,reduce the operator's human error.
3. Durable the reliable robot makes a reservation to feedback.
4. Contorl and write down the system to improve production efficiency and reduce the human error through the automatic operatin of the robot.
5. The longest average trouble spacing interval.
6. The open PC contorls and platform immediately.

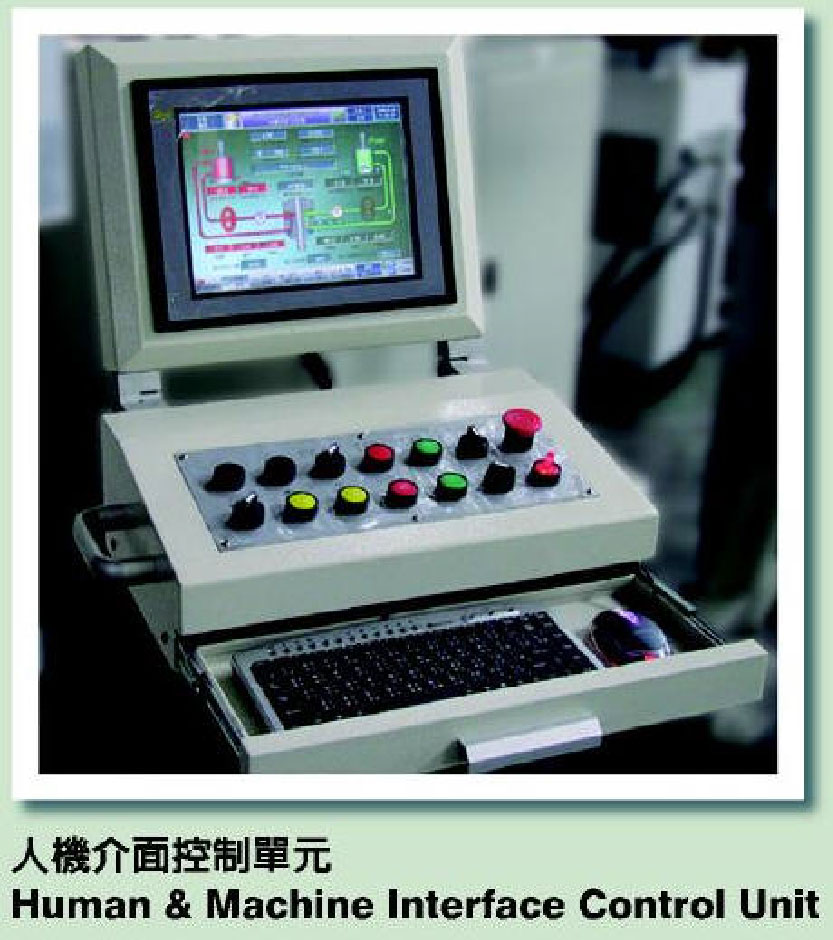

Human&Machine Interface Contorl Unit：
1. Friendly graph interface with touch panel controller which is intrgated one stop monitor&controller for temperature,pressure,timer,metering and mixing conditions.
2. Easy operation path teaching and graph convert function.

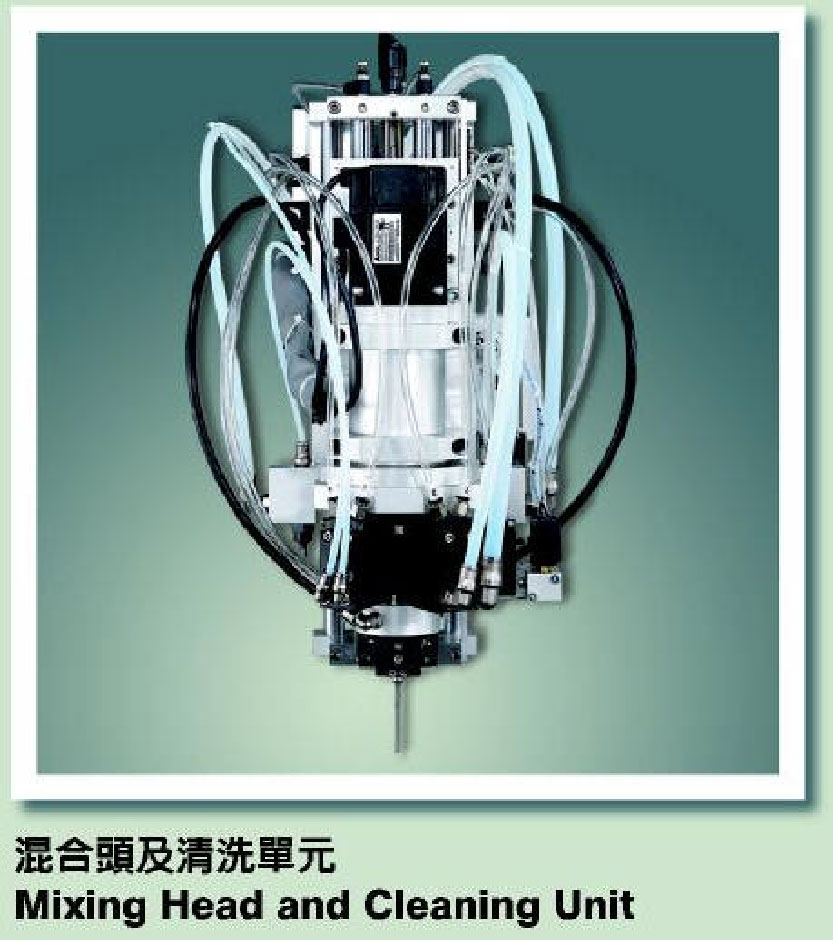

Mixing Head and Cleaning Unit：
1. New design dynamic mixing head is suitable for liquid to highly viscous porlymer rection materials for foaming,sealing,glueing and casting.
2. 2 or 3 material components process system for various applications at the same times.

Chemical Machine Technical Data：

Robot Teachnical Data：

Type	Rated Payload	Supplementary Load	Max.working Radius	Axis	Repeatability	Weight
KR60-3	60 Kg	35 Kg	2033mm	6	±0.20mm	635 Kg
KR100 Comp	100 Kg	100Kg	2400mm	6	±0.15mm	1155Kg
